Najmat Township

03 — Professional Work

Najmat Township

Khatib & Alami, Dubai

Year
2024
Typology
Residential villas
Location
Reem Island, Abu Dhabi
Role
Architecture Intern · Concept to schematic design

Advancing the Najmat township from concept to schematic design during a six-month internship at Khatib & Alami.

I developed detailed Revit models based on the lead architect's decisions. The role strengthened my skills in space planning, interdisciplinary coordination, elevation design, and value engineering to optimise construction cost and efficiency.

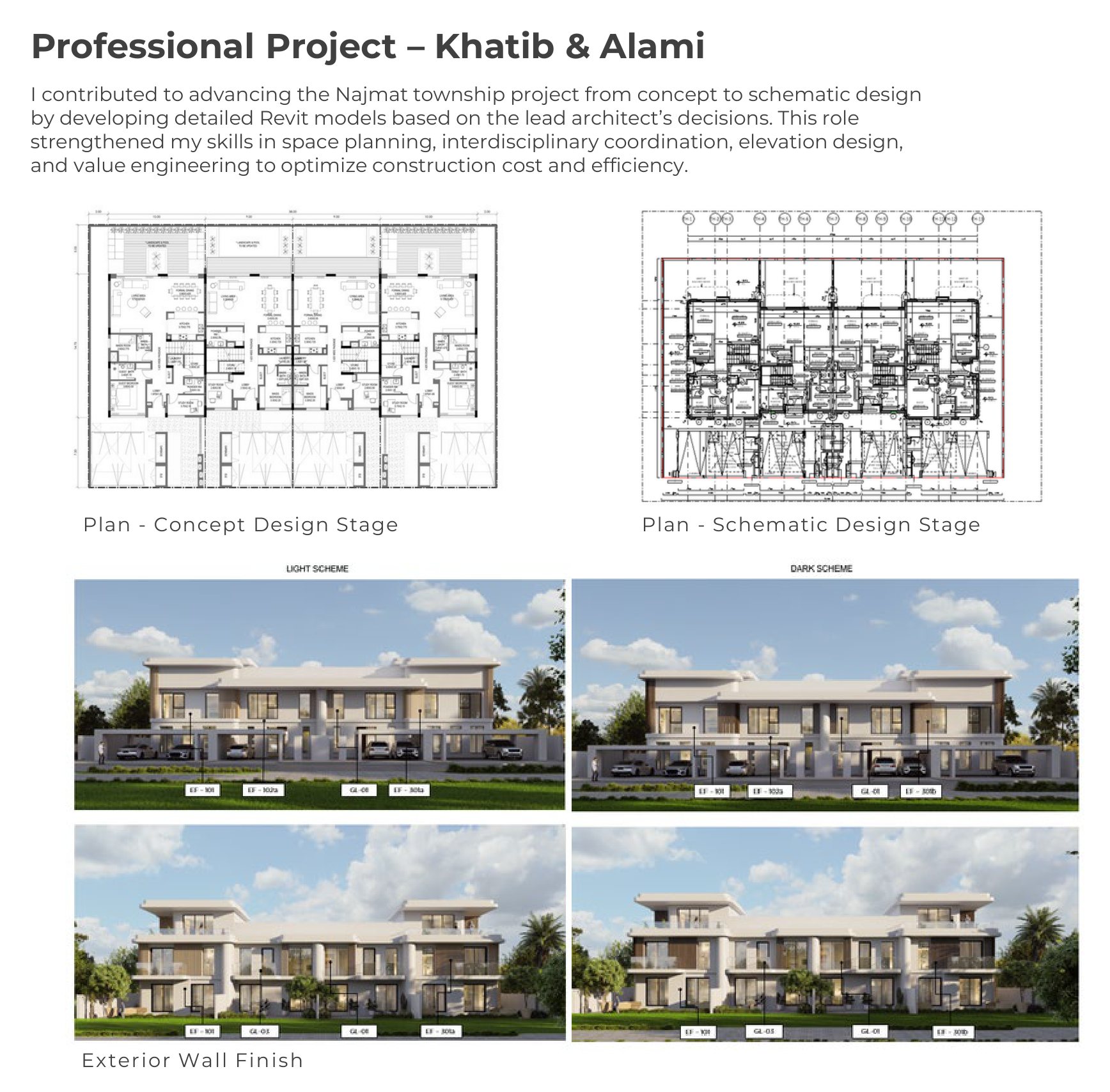

Plan - concept design stage
Plan - concept design stage
Plan - schematic design stage
Plan - schematic design stage
Exterior wall finish - light scheme
Exterior wall finish - light scheme
Exterior wall finish - dark scheme
Exterior wall finish - dark scheme

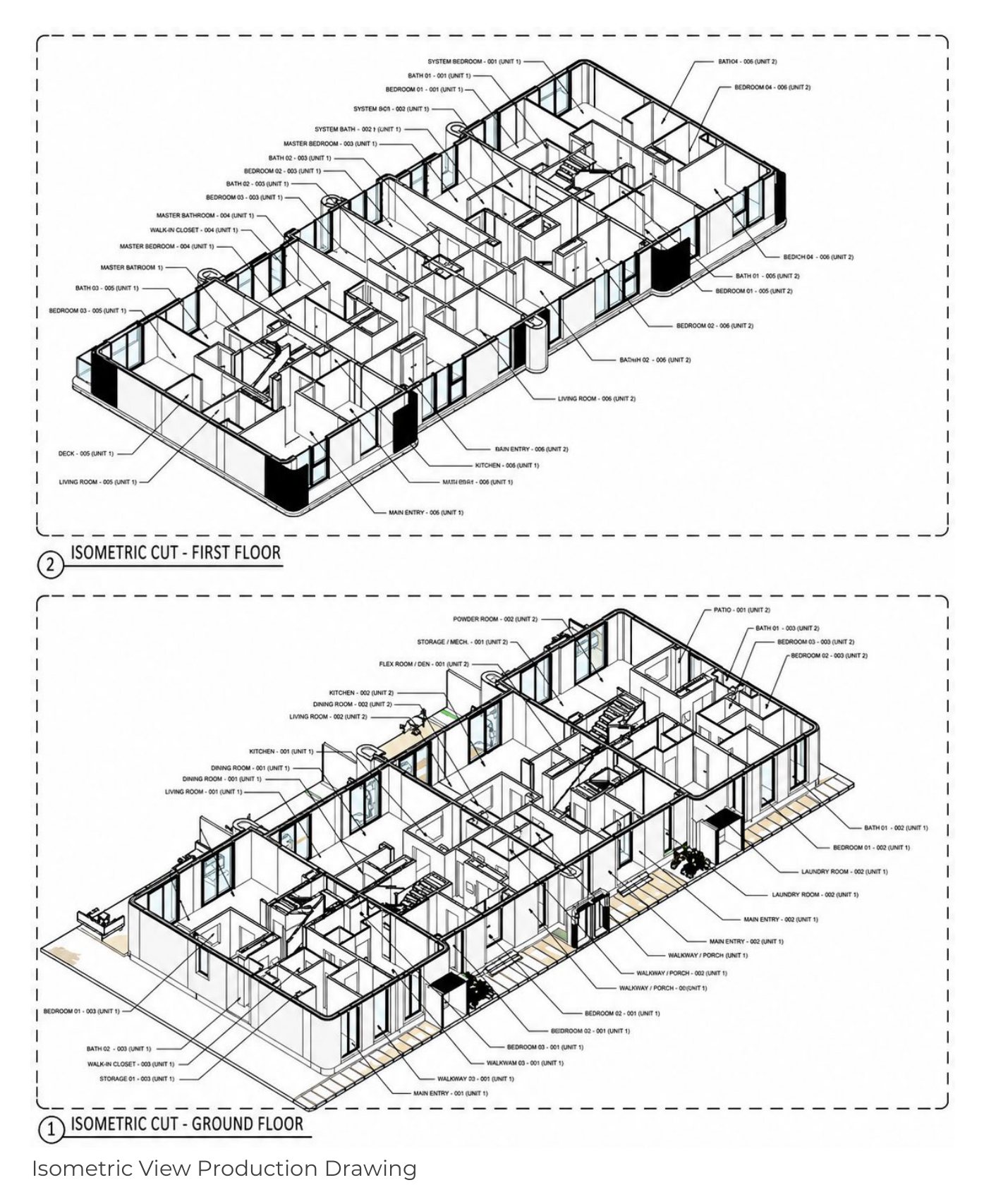

Isometric production drawings - first and ground floor cuts
Isometric production drawings - first and ground floor cuts

Iterations

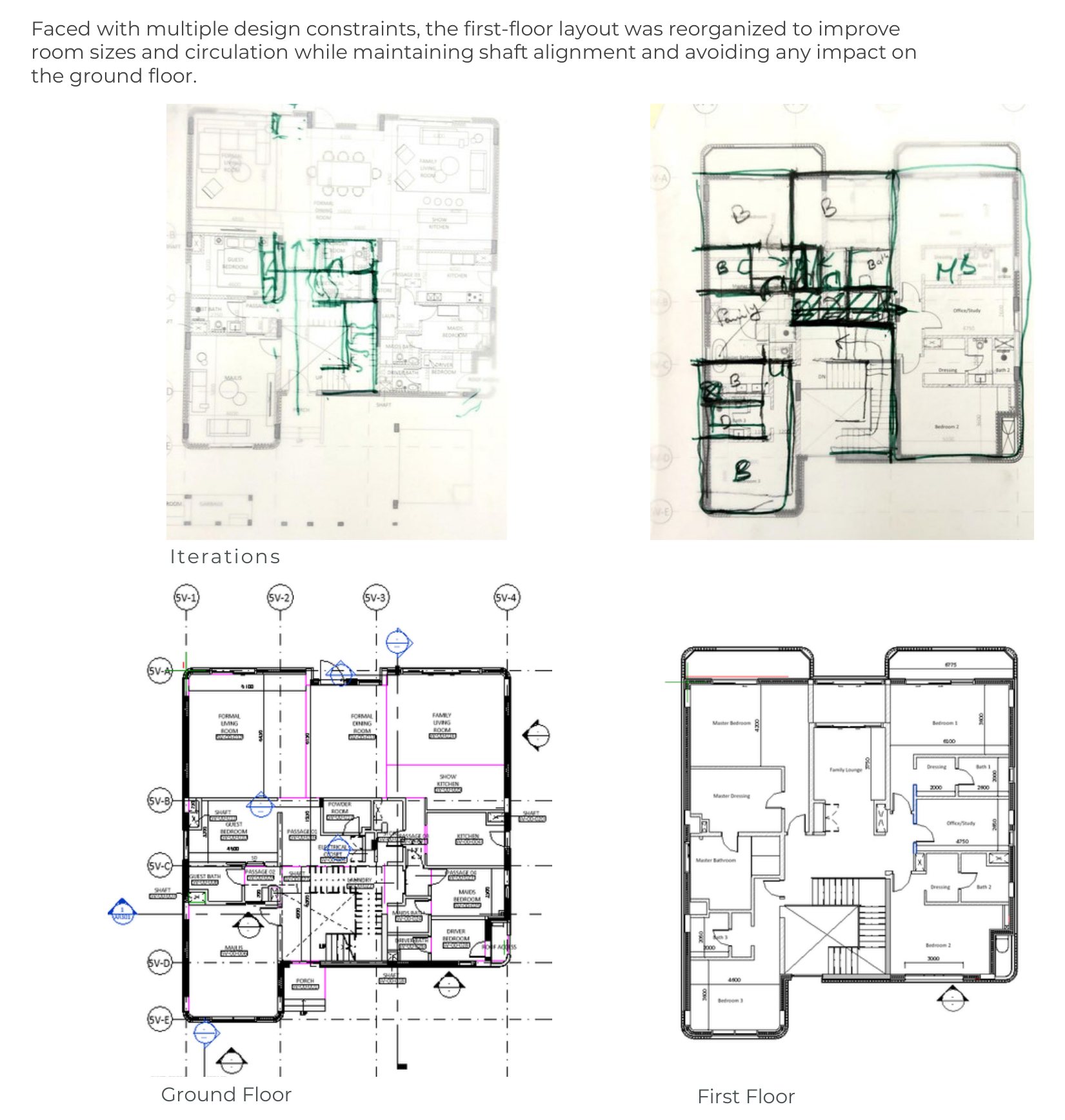

Faced with multiple design constraints, the first-floor layout was reorganised to improve room sizes and circulation while maintaining shaft alignment and avoiding any impact on the ground floor.

Hand iteration
Hand iteration
Hand iteration
Hand iteration
Ground floor
Ground floor
First floor
First floor

Material schemes

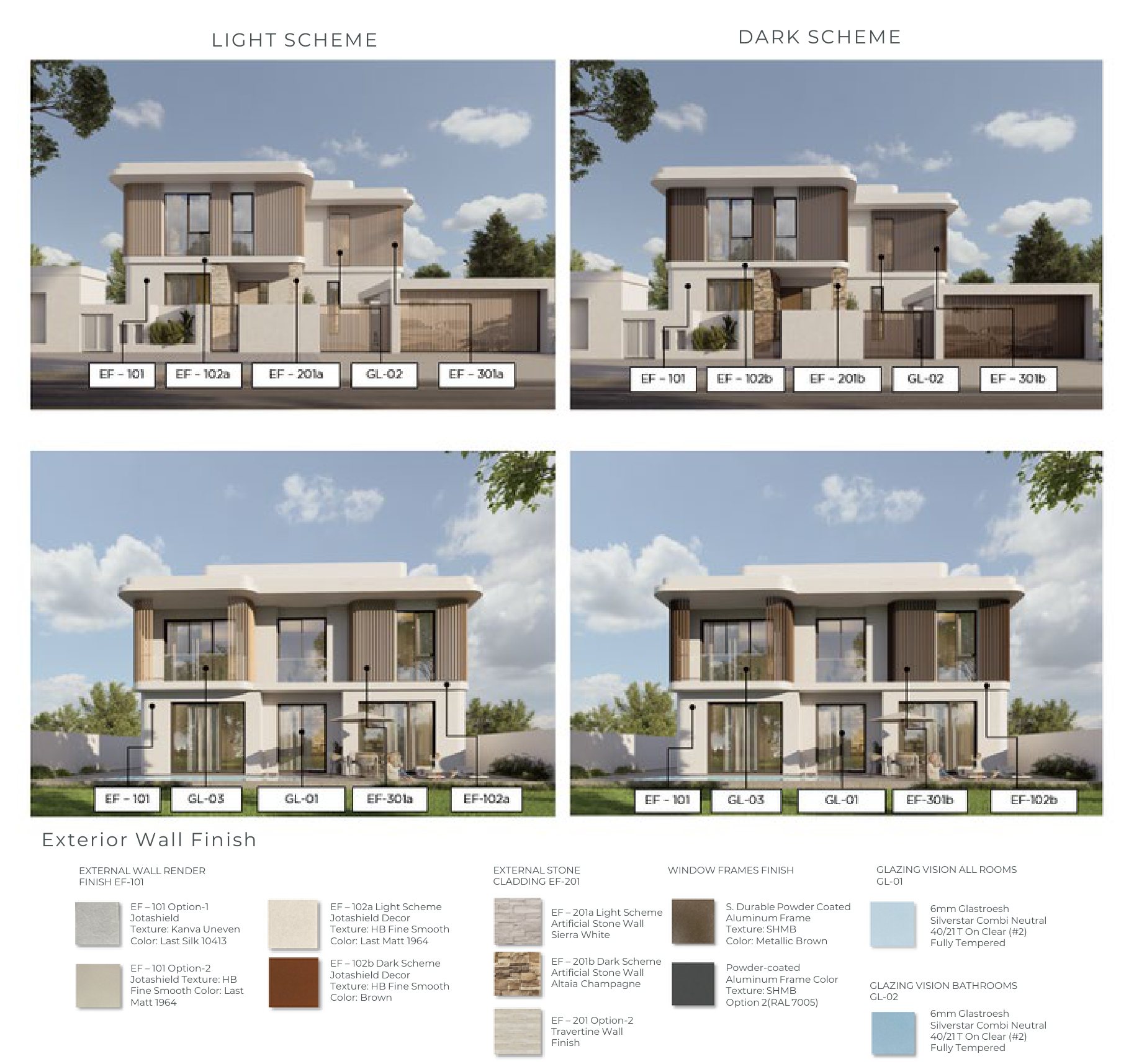

Light and dark exterior schemes were specified in full - selected from supplier catalogues and coded onto the elevation renders for the wider project team.

Light and dark schemes, with each finish coded on the elevation
Light and dark schemes, with each finish coded on the elevation
Material schedule - wall render, parapet, stone cladding, aluminium slats, window frames, glazing and glass balustrade
Material schedule - wall render, parapet, stone cladding, aluminium slats, window frames, glazing and glass balustrade
