01 — M.Arch Thesis Project

ReRock

Reimagine, Reintegrate, Rebuild

Year
2025 – 2026
Typology
Housing
Location
London, UK
Context
The Bartlett, UCL · RC10 · Group thesis
Award
Bartlett Silver Prize 2025–26

A group thesis project, ReRock investigates how stone can be reintroduced as a mass construction material for the 21st century.

While stone produces substantially less embodied carbon than concrete and can endure for centuries, its use has declined due to high labour costs and complex construction processes. ReRock asks whether advances in computational design, robotic fabrication, and post-tensioned structural systems can reverse this trend.

Through an architectural language of fingerprint-like stone vaults, continuous formations emerge from the logic of compression. These spatial landscapes challenge conventional residential typologies, replacing repetitive building systems with structurally expressive shells that unite enclosure and structure. ReRock proposes a future where low-carbon, long-life architecture is once again built from stone.

Stone vaults discretised into blocks
Stone vaults discretised into blocks

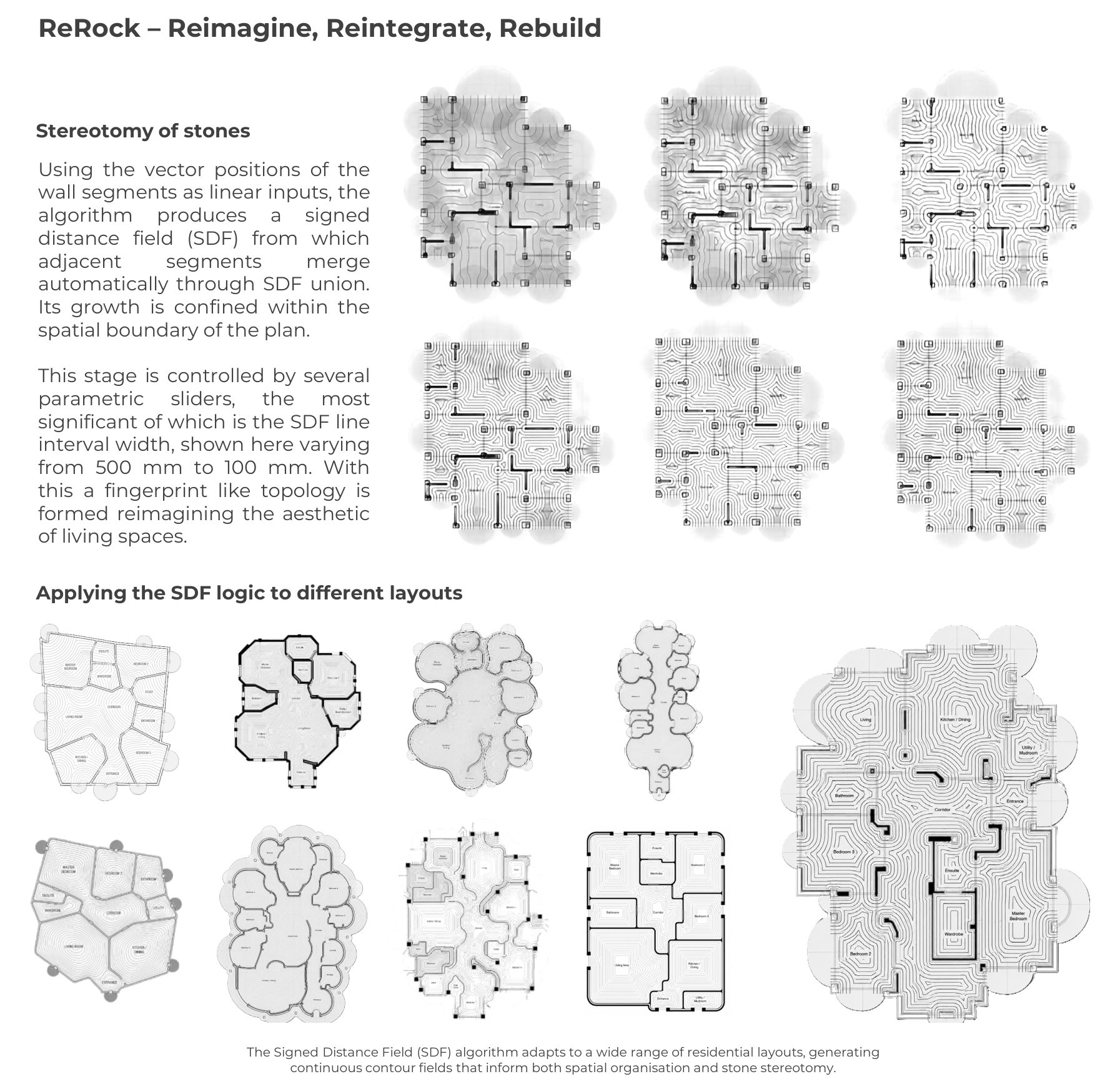

Stereotomy of stones

Using the vector positions of the wall segments as linear inputs, the algorithm produces a signed distance field (SDF) from which adjacent segments merge automatically through SDF union. Its growth is confined within the spatial boundary of the plan.

The stage is controlled by several parametric sliders, the most significant of which is the SDF line interval width. With this a fingerprint-like topology is formed, reimagining the aesthetic of living spaces.

The same plan with the SDF line interval width varied from 500 mm to 100 mm.

Applying the SDF logic to different layouts

The algorithm adapts to a wide range of residential layouts, generating continuous contour fields that inform both spatial organisation and stone stereotomy.

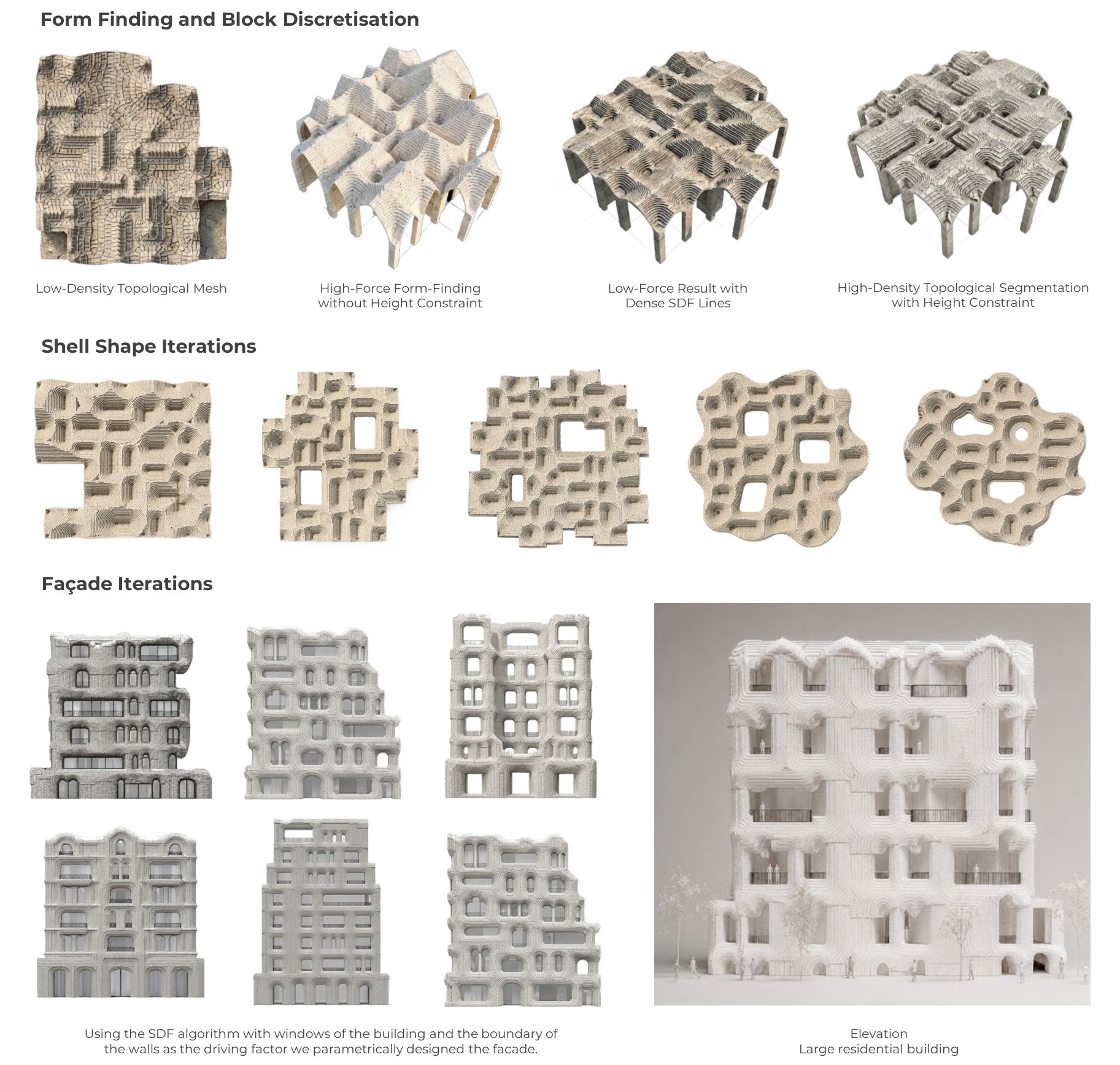

Form finding & block discretisation

The contour fields are form-found into compressive shells and discretised into individual stone blocks - tested from low-density topological meshes to high-density segmentation under a height constraint.

Low-density topological mesh
Low-density topological mesh
High-force form-finding without height constraint
High-force form-finding without height constraint
Low-force result with dense SDF lines
Low-force result with dense SDF lines
High-density topological segmentation with height constraint
High-density topological segmentation with height constraint

Shell shape iterations

Façade iterations

Elevation - large residential building
Elevation - large residential building

Using the SDF algorithm with the building's windows and wall boundaries as the driving factors, the façade is designed parametrically.

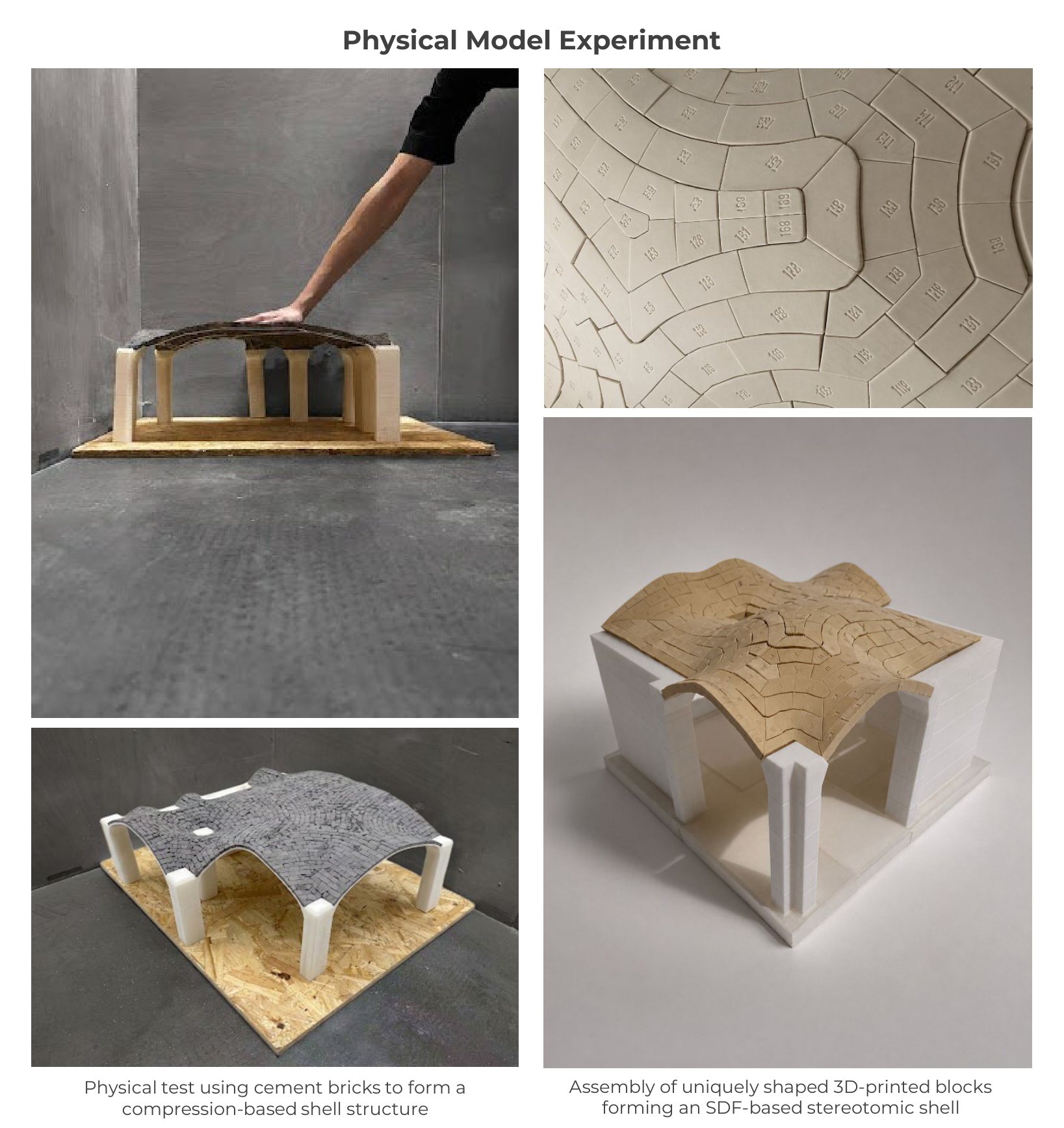

Physical model experiments

The geometry was tested physically: cement bricks assembled into a compression-based shell, and uniquely shaped 3D-printed blocks assembled into an SDF-based stereotomic shell.

Load test on the cement-brick compression shell
Load test on the cement-brick compression shell
The cement-brick shell on its supports
The cement-brick shell on its supports
Uniquely shaped 3D-printed blocks, numbered for assembly
Uniquely shaped 3D-printed blocks, numbered for assembly
The assembled SDF-based stereotomic shell
The assembled SDF-based stereotomic shell

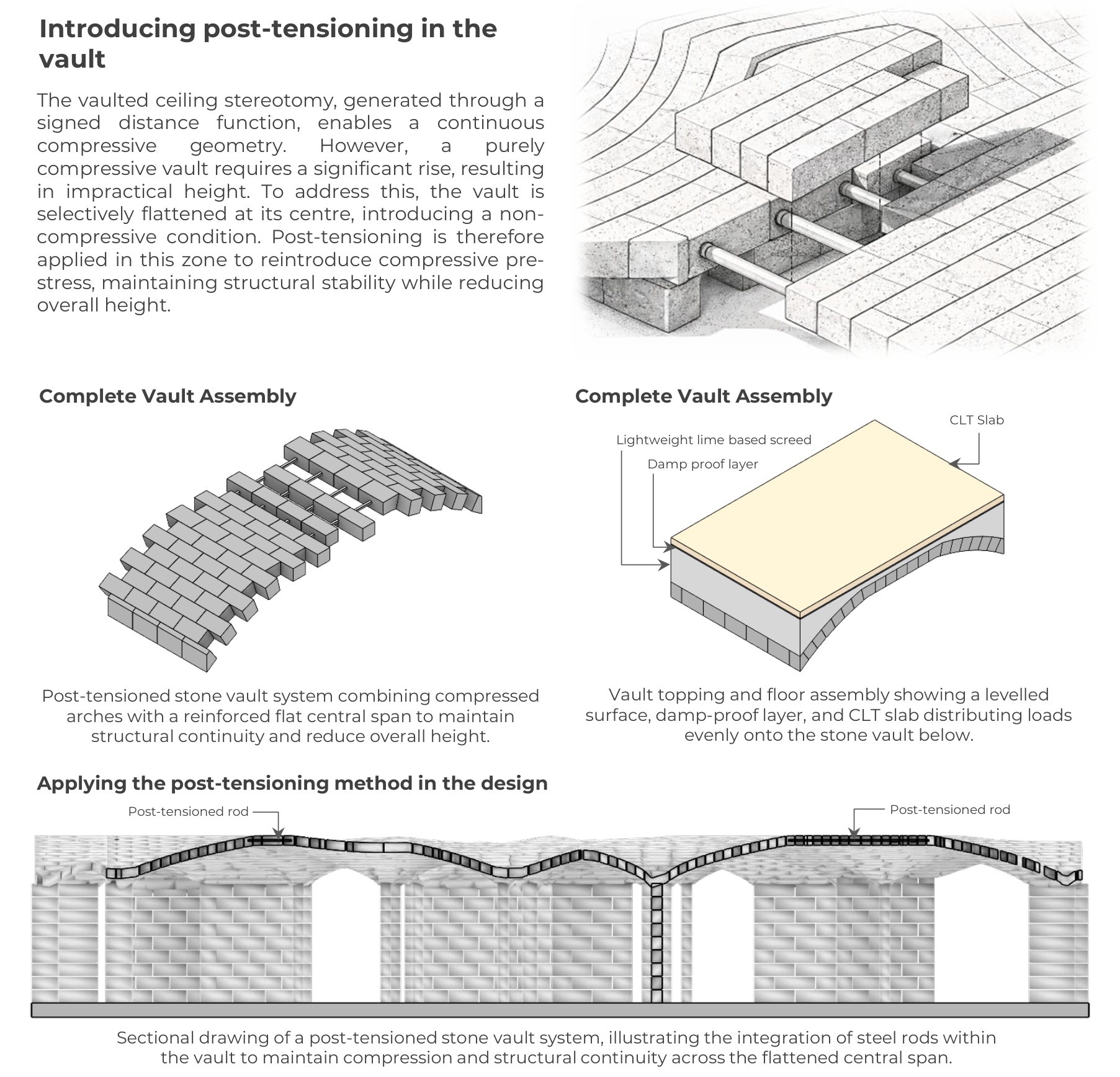

Introducing post-tensioning

The vaulted ceiling stereotomy, generated through a signed distance function, enables a continuous compressive geometry. But a purely compressive vault requires a significant rise, resulting in impractical height.

The vault is therefore selectively flattened at its centre, introducing a non-compressive condition. Post-tensioning is applied in this zone to reintroduce compressive pre-stress - maintaining structural stability while reducing overall height.

Steel rods threaded through the stone blocks at the flattened centre of the vault
Steel rods threaded through the stone blocks at the flattened centre of the vault
Complete vault assembly - compressed arches with a reinforced flat central span
Complete vault assembly - compressed arches with a reinforced flat central span
Vault topping and floor assembly - a levelled surface distributing loads evenly onto the stone vault below
Vault topping and floor assembly - a levelled surface distributing loads evenly onto the stone vault below
Section - steel rods within the vault maintain compression and structural continuity across the flattened central span
Section - steel rods within the vault maintain compression and structural continuity across the flattened central span
Living beneath the stone vaults
Living beneath the stone vaults

Terraced housing proposal

Responding to London's urban context, the project reinterprets the traditional terraced house. While maintaining a standard rectangular footprint, the SDF vault geometry undergoes a tectonic inversion - shifting from a horizontal floor system to a vertical load-bearing envelope, the structural stone shell redefines the building's street presence.

The façade's SDF-driven textures create fluid, lithic waves that wrap internal slabs and columns, its undulations and apertures self-shaping according to the internal programme.

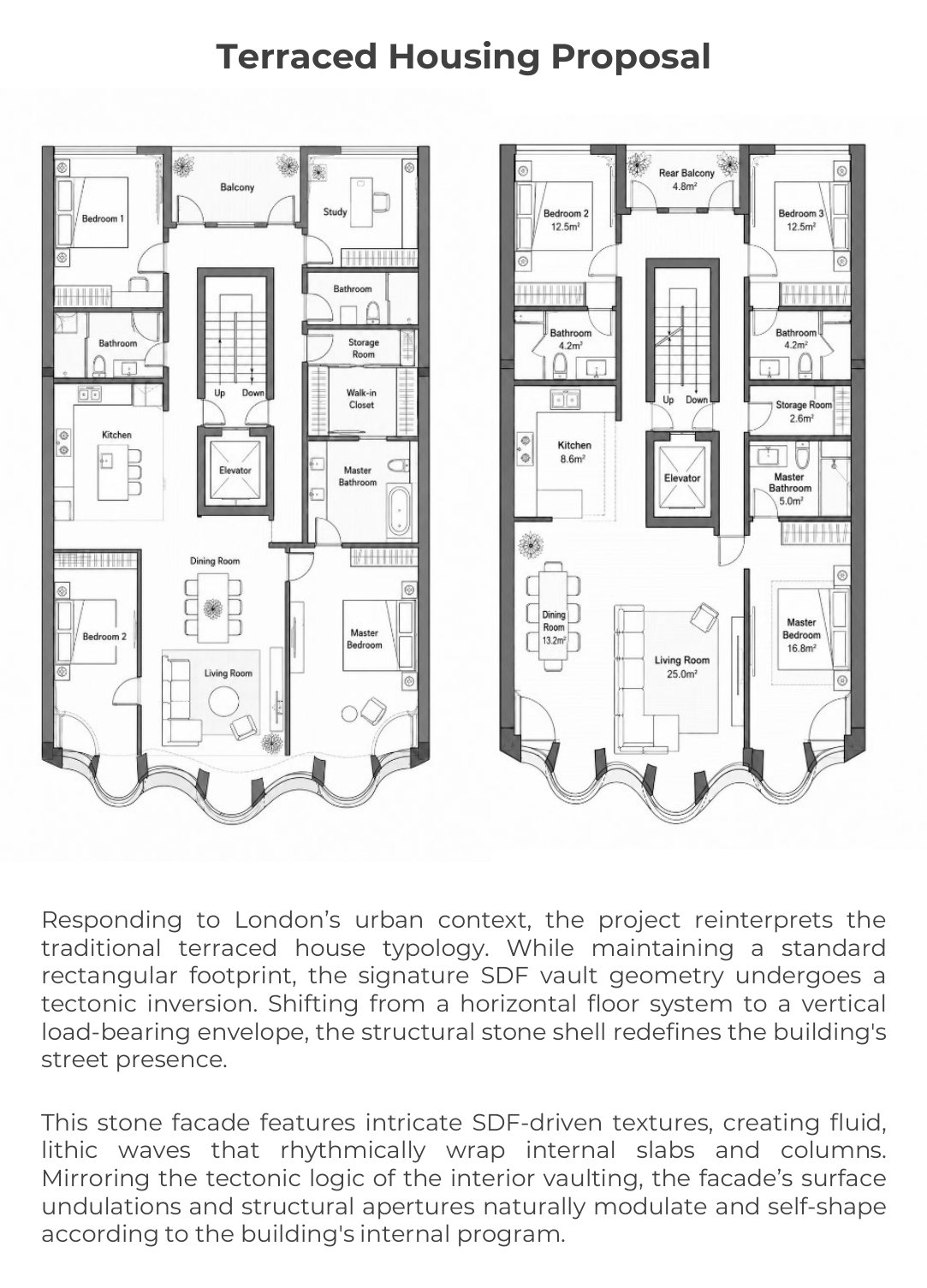

Terraced house plan
Terraced house plan
Terraced house plan
Terraced house plan
Street elevation, London
Street elevation, London

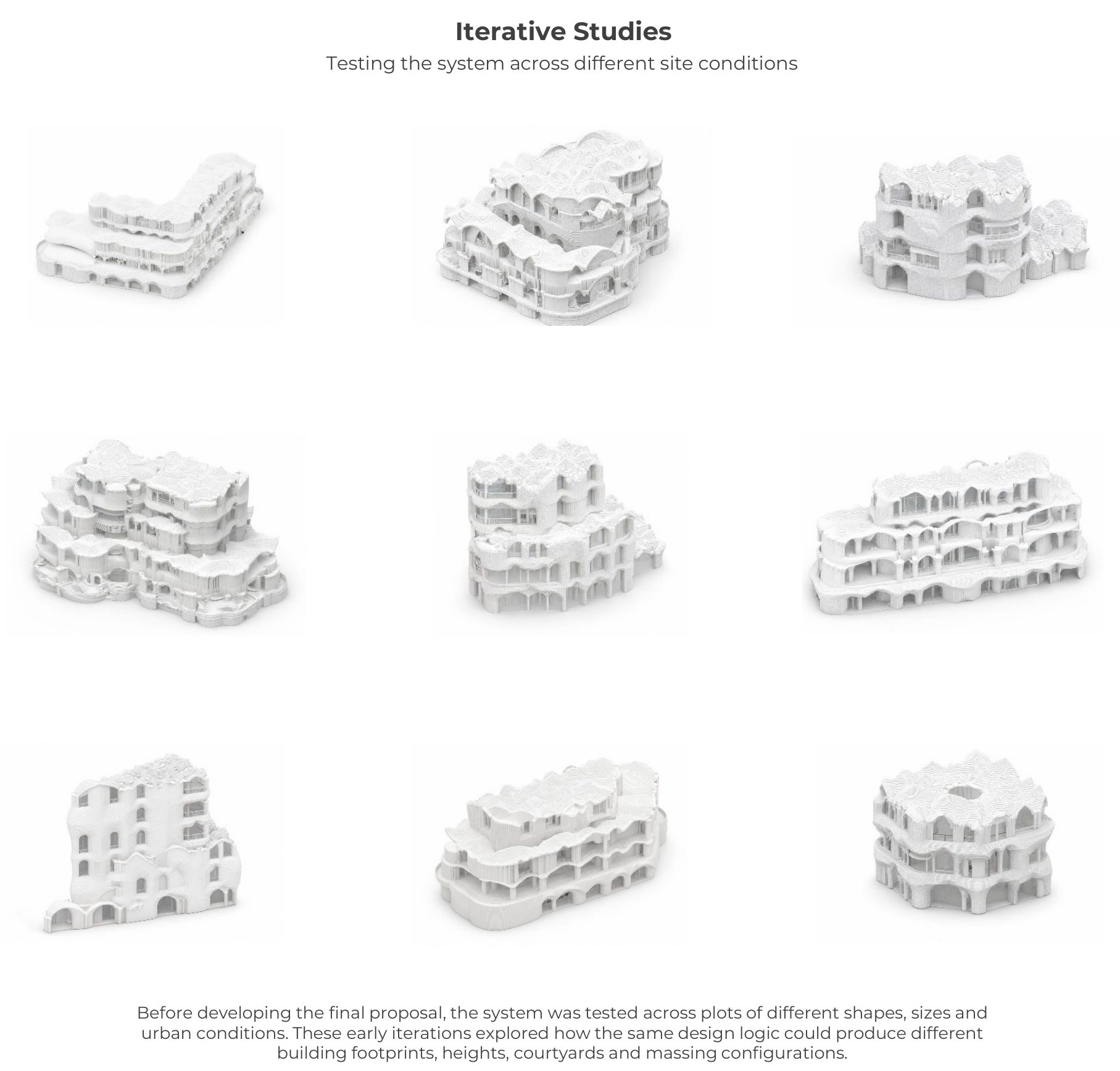

Iterative studies

Before developing the final proposal, the system was tested across plots of different shapes, sizes and urban conditions - exploring how the same design logic could produce different footprints, heights, courtyards and massing configurations.

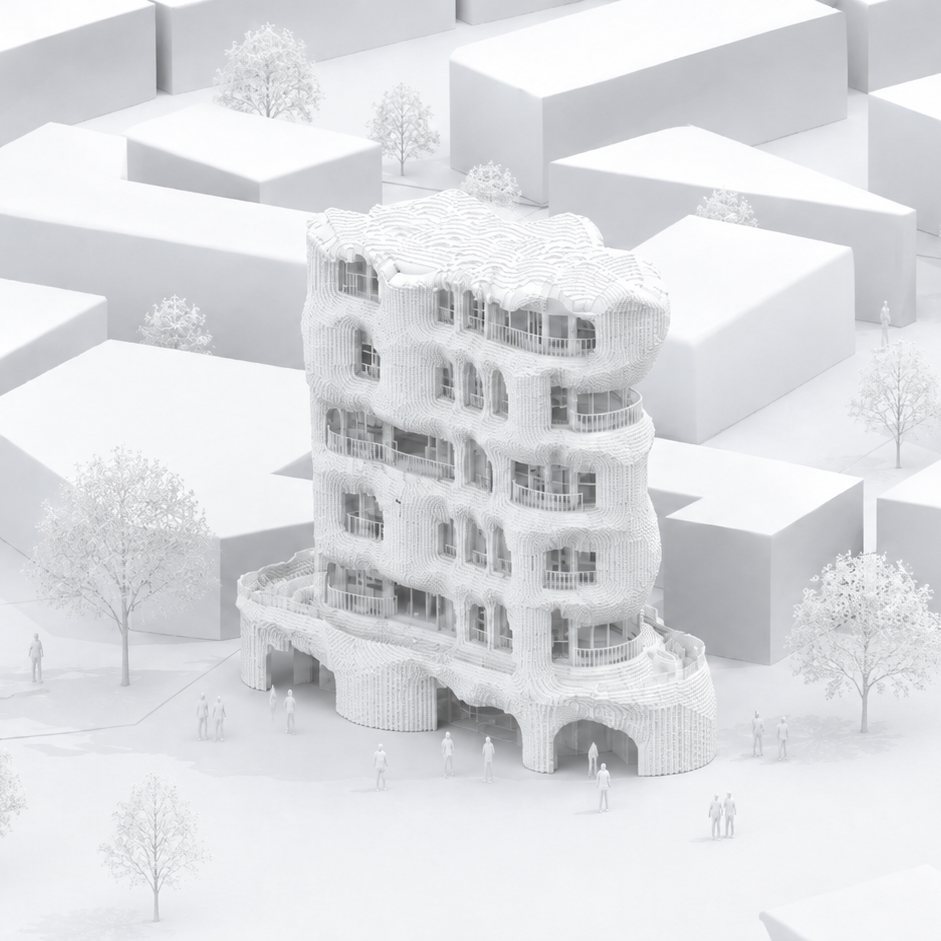

Massing in context
Massing in context

Standalone building proposal

A standalone residential proposal for London, exploring load-bearing stone architecture through SDF logic. Window openings and site boundaries generate a continuous stereotomic shell, while physics-informed vaults form the roof - integrating structure, enclosure and expression.

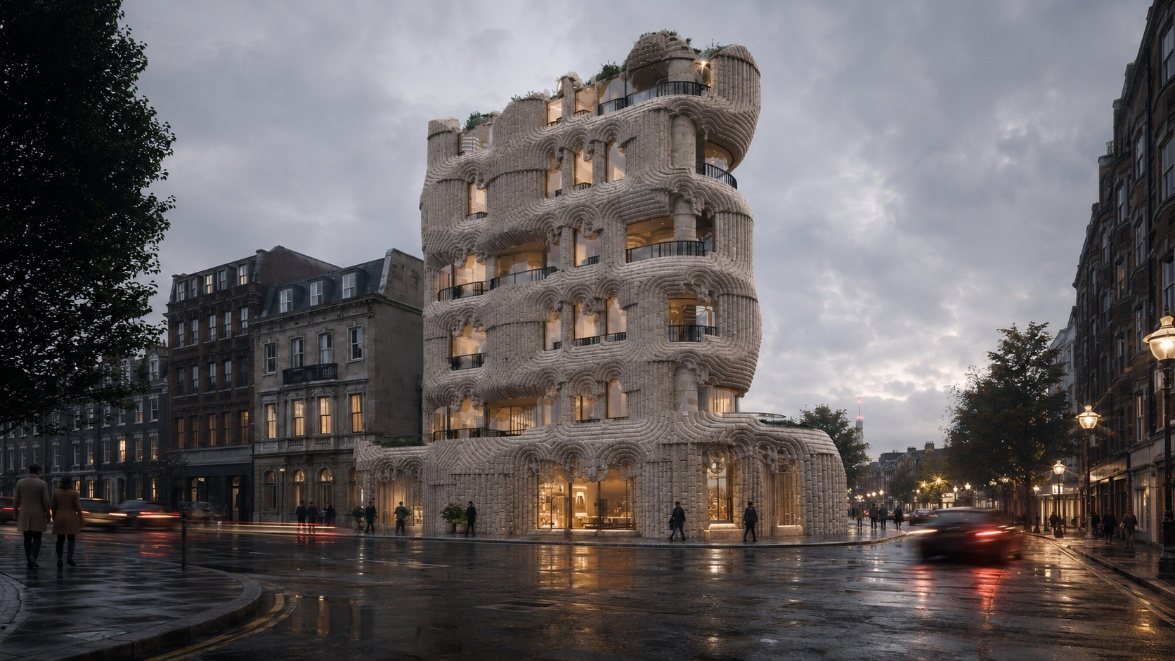

Standalone building proposal, street corner at dusk
Standalone building proposal, street corner at dusk

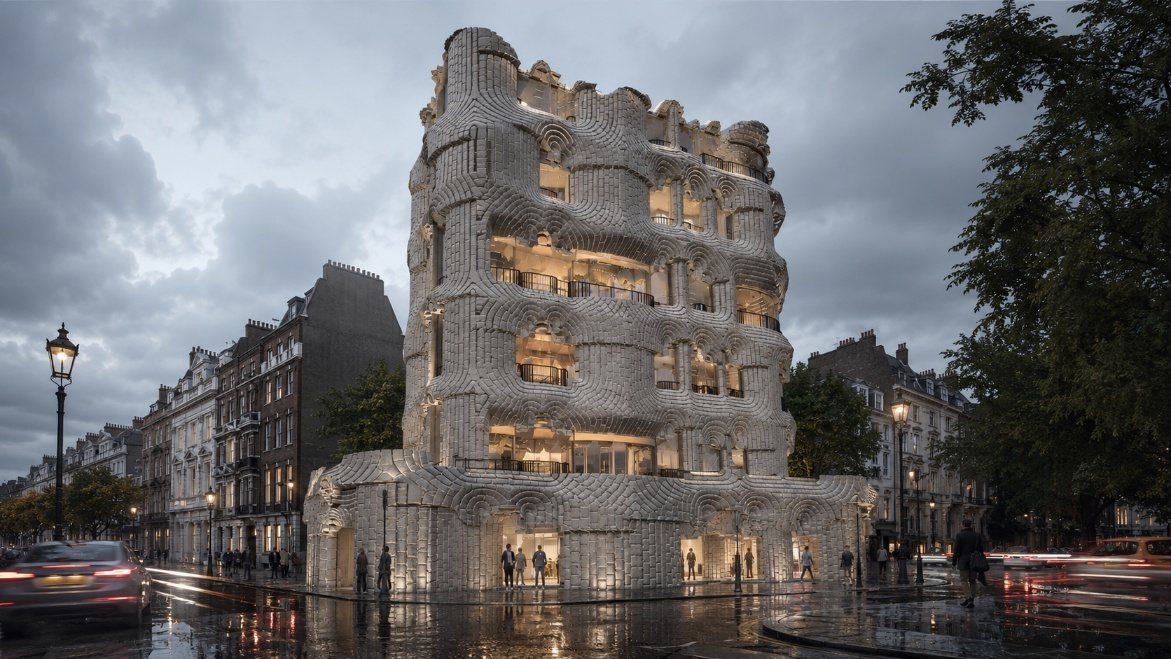

The stone shell meeting the London street
The stone shell meeting the London street

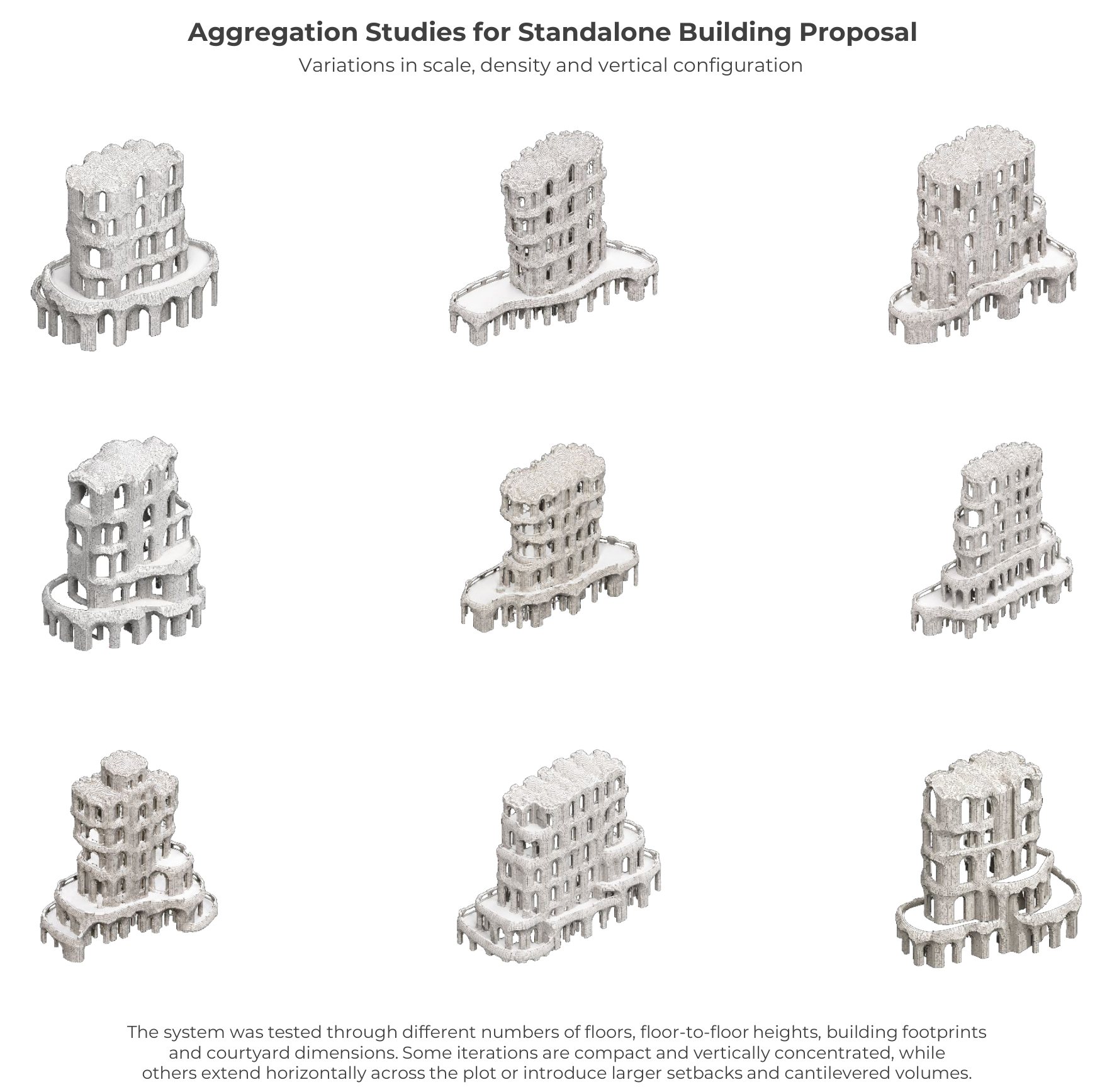

Aggregation studies

The system tested through different numbers of floors, floor-to-floor heights, building footprints and courtyard dimensions - some compact and vertical, others extending across the plot with setbacks and cantilevered volumes.
